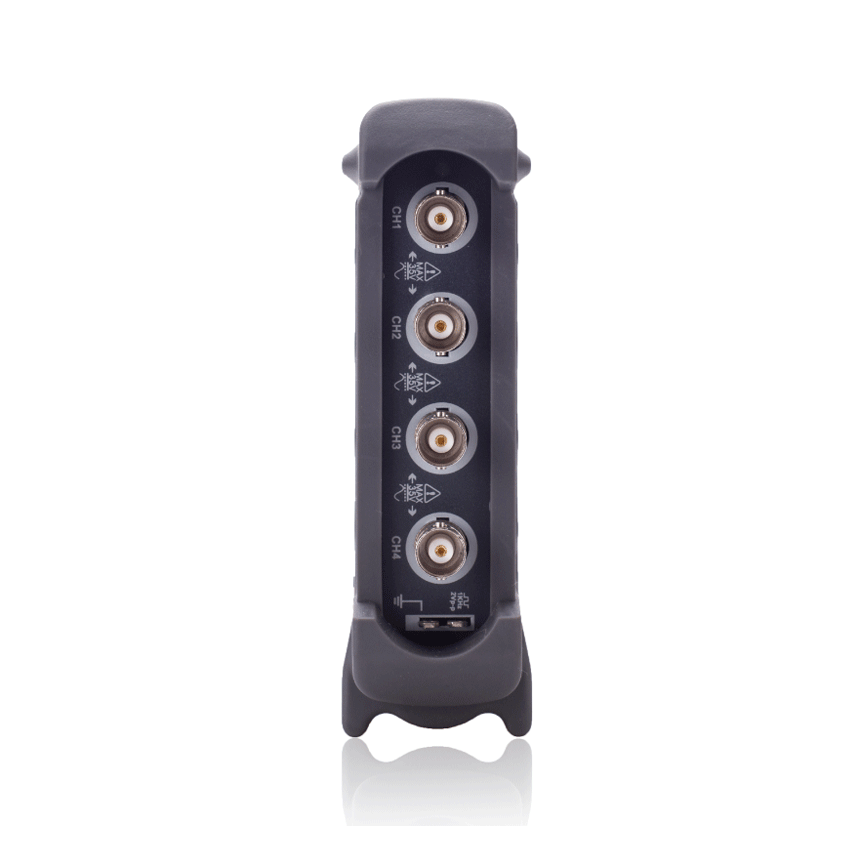

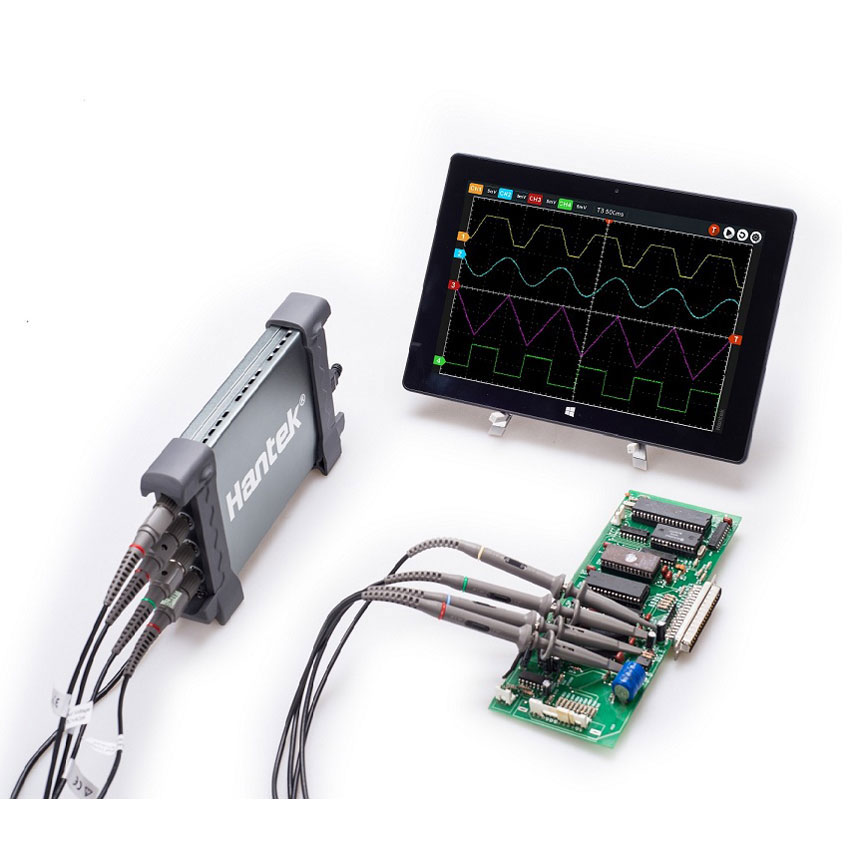

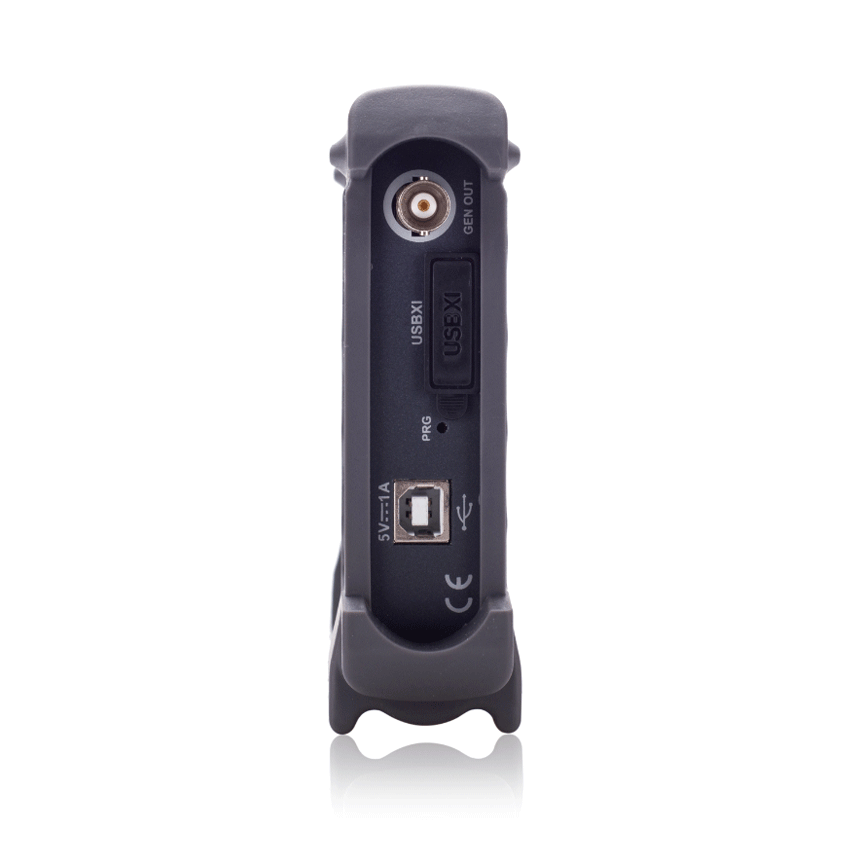

4 kanal osiloskop ve fonksiyon/Arb. dalga formu üretecidir. 4 bağımsız analog kanala, 1GSa/s gerçek zamanlı örnekleme hızına, 2mV-10V/DIV giriş hassasiyetine, 250MHz bant genişliğine ve Arbitrary Waveform Generator'a sahiptir. USB2.0 Arayüzü ile çalışır, küçük boyutlu tak ve çalıştır cihazın taşınması kolaydır. Geçme/kalma testi, becerikli tetikleme işlevi, dinamik imleç izleme, dalga formu kaydı ve tekrar oynatma işlevlerine sahiptir.
- 250MHz Bant Genişliği
- 4 Kanal
- 1GSa/s Örnekleme Oranı
- 64K Hafıza Derinliği
|
Model |
Hantek6254BD |
|
Bandwidth |
250MHz |
|
Channel |
4 CH |
|
Real-time Sampling Rate |
1GSa/s |
|
Memory Depth |
64K |
|
Time Base Precision |
±50ppm |
|
Time Base Range |
2ns/div-1000s/div (1-2-4 sequences) |
|
Input Impedance |
1MΩ 25pF |
|
Input Sensitivity |
2mV/div～10V/div |
|
Vertical Resolution |
8Bit |
|
Vertical Displacement Range |
2mV～10V/div @ x1 probe; 20mV～100V/div @ x10 probe； 200mV～1000V/div @ x100 probe; 2V～10000V/div @ x1000 probe |
|
DC Gain Accuracy |
±3% |
|
Bandwidth Limit |
20MHz |
|
Trigger Mode |
Edge, Pulse, Video, Alternative |
|
Trigger Source |
CH1, CH2, CH3,CH4 |
|
Waveform Signal Process |
+,-,x,÷,FFT, Invert |
|
Cursors Measurement |
Cross, Trace, Horizontal, Vertical |
|
Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
|
Arbitrary Waveform Generator Mode |
|
|
Waveform Frequency |
DC~25MHz |
|
DAC |
2K~200MHz adjustable |
|
Frequency Resolution |
0.10% |
|
Channel |
1CH waveform output |
|
Waveform Depth |
2KSa |
|
Vertical Resolution |
12 bit |
|
Frequency Stability |
<30ppm |
|
Wave Amplitude |
±3.5V Max. |
|
Output Impedance |
50 Ω |
|
Output Current |
50mA, Ipeak=50mA |
|
System BW |
25M |
|
Harmonic Distortion |
-50dBc(1KHz), -40dBc(10KHz) |
|
General Features |
|
|
Volume |
175mm * 105mm * 25mm |
|
Weight |
0.9KG |
|
Accessory |
2 passive probes, 2 gator clip lines，1 BNC to BNC cord |
